SPECIFICATIONS
Applicable Industries: hotels,Restaurant,barbecue,Food & Beverage Factory
Application: Resturant,,coffee roasting,industry manufacture
Power supply: 16-18kV,500-1000W, 2 unit
Size: 700*1490*820mm
Warranty: 1 year
brand name: KELV

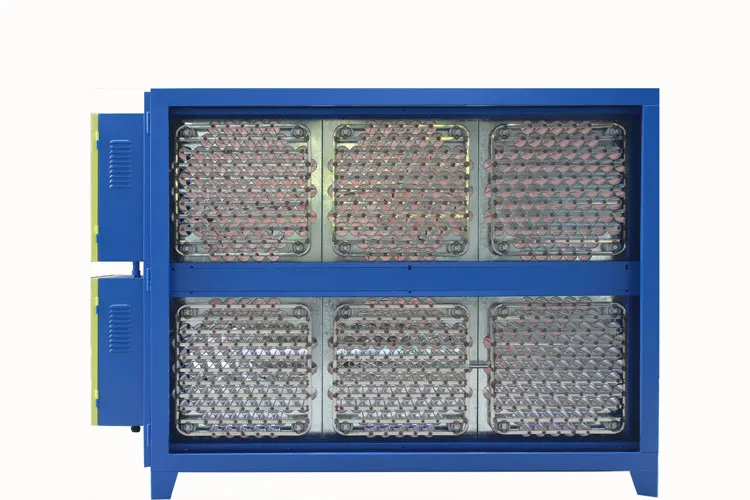

core components: honeycomb type electrostatic filter,power supply
filter type: 88tube,honeycomb,2pcs
flange size: 1125*585mm
frame material: carbon steel
input voltage: 220V
machinery test report: Provided
output power: 0.85W
place of origin: Guangxi, China
purify efficiency: 90%
video outgoing-inspection: Provided
warranty: 1 Year
weight (kg): 122
Are you still troubled by these problems?
1.The commercial smoke smell and industry fumes are Harmful Substances Affect your Health. 2.air pollution,Resident Complaint.
3.Environmental surprise inspection,fail the inspection,Will face fines and closures.
4.The smell of oil smoke affects business and loses many customers. Choose us to easily solve the troubles caused by lampblack !
5.if your purify equipment is Unstable operation of equipment requires constant maintenance?
6.if your purify equipment is difficult to clean?
Model-L （When you choose, you can consult customer service first to ensure that you choose the right one）
Model |
Air flow(M ³/h) |
Size(L*W*H)(mm) |
Flange size(L*W)(mm) |
Net weigh(kg) |
Voltage (V) |
Power (W) |
KL-L-4A |
4000 |
700*780*750 |
415*490 |
57 |
220 |
350 |
KL-L-6A |
6000 |
700*890*820 |
525*585 |
67 |
220 |
450 |
KL-L-8A |
8000 |
700*945*880 |
580*645 |
80 |
220 |
550 |
KL-L-10A |
10000 |
700*965*1060 |
600*825 |
93 |
220 |
750 |

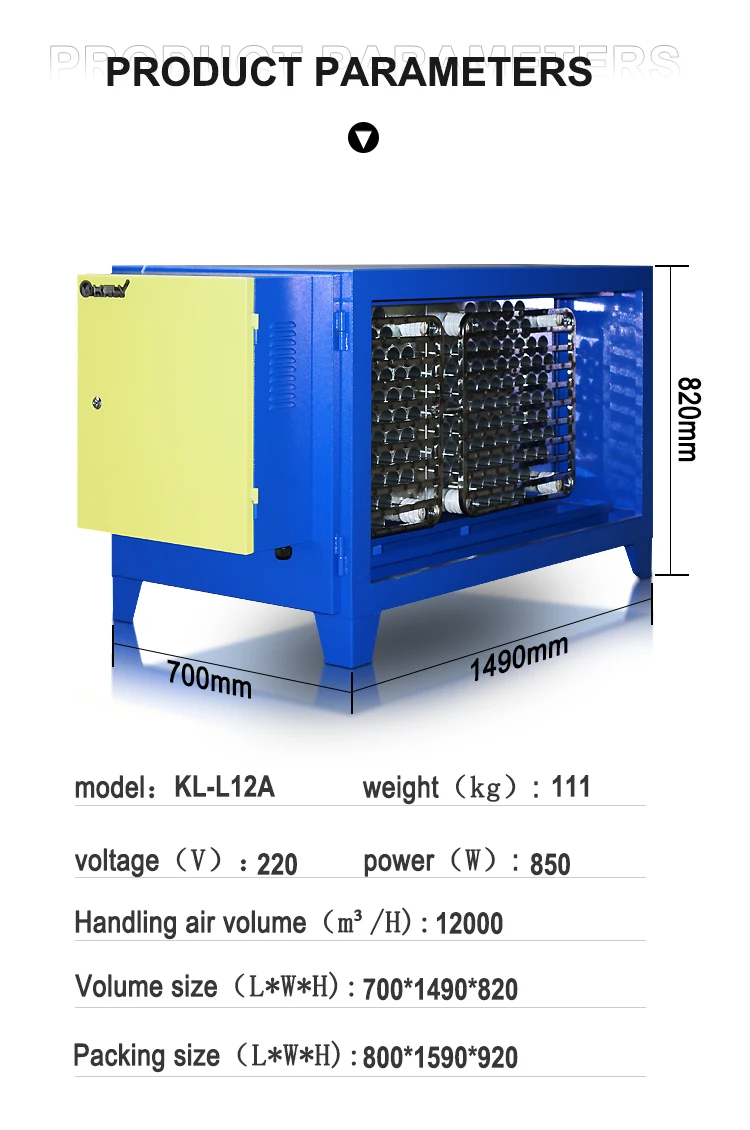

KL-L-12A |
12000 |
700*1490*820 |
1125*585 |
111 |
220 |
850 |
KL-L-16A |
16000 |
700*1605*880 |
1240*645 |
122 |
220 |
900 |
KL-L-20A |
20000 |
700*1270*1310 |
905*1075 |
152 |
220 |
1000 |
KL-L-25A |
25000 |
700*1270*1310 |
905*1075 |
160 |
220 |
1050 |
KL-L-30A |
30000 |
700*1490*1500 |
1125*1265 |
190 |
220 |
1200 |
KL-L-36A |
36000 |
700*1490*1500 |
1125*1265 |
198 |
220 |
1300 |
KL-L-42A |
42000 |
700*1605*1620 |
1240*1385 |
222 |
220 |
1350 |
KL-L-56A |
56000 |
700*2090*1500 |
1725*1265 |
257 |
220 |
1500 |

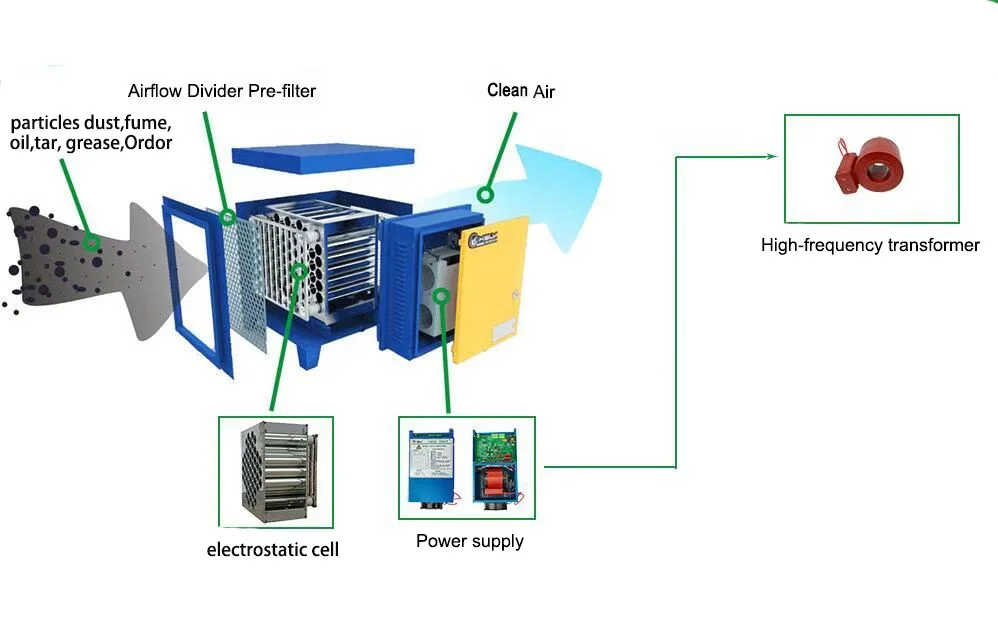

What is electrostatic precipitator（ESP）?
Electrostatic precipitator is a type of filter that uses static electricity to remove oil fume from exhaust fumes before it
exit from the exhaust pipe. The core part of the ESP is the electrostatic cell,The honeycomb structure electrostatic cell which is charged with a high voltage by high voltage power supply. Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders. As a result,85%-95% of oil fume will be moved.
Working principle:
Electrostatic remove oil fume technology is the use of the cathode in the high voltage electrostatic filter emitted electron and because of the negative ions generated by electron impact air to capture the soot particles, generally in the zero point can make the soot particle in a few seconds with enough charge a charged particle in the electrostatic filter is the function of electrostatic filter force, make the soot particles are anode adsorption, sedimentation at the anode, so as to achieve the purpose of purifying oil fume.

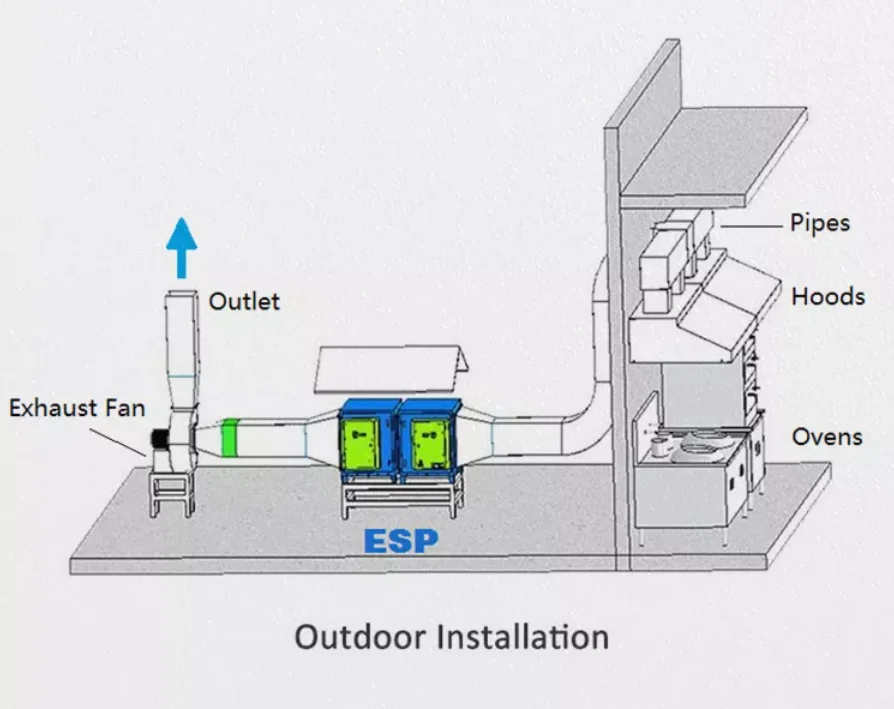

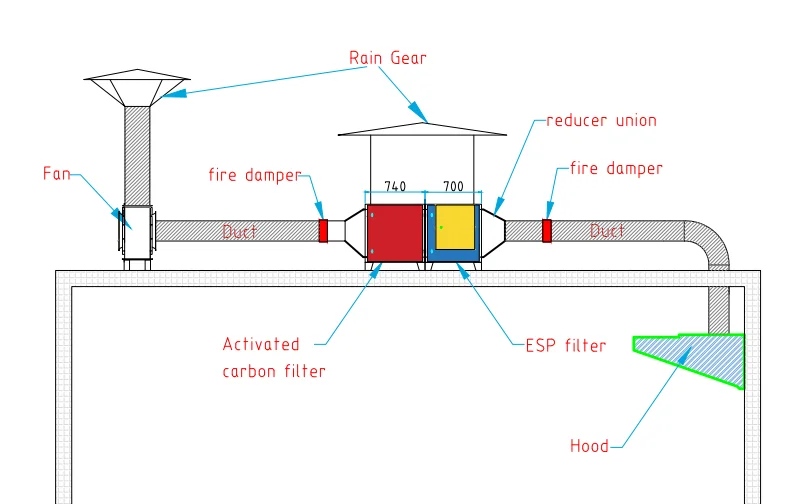

Installation Instructions
Guangxi Kelv Environmental Technology Co.,Ltd.was established in 2015 and is located in the High-tech Development Zone of Nanning City,Guangxi.,Dust purification equipment research and development,production,sales and after-sales as a high-tech enterprise.Main products:Electrostatic Precipitator,Water Cyclone Tower,UV Ozone filter Activated Carbon Filter，all-in one dust filter,all-one kitchen hood,all-in one barbecue car,,boiler fume dust purifier,ESP filter,power supply，etc.Our company has a number of independent intellectual property rights,and strives to create a high-efficiency,energy-saving and world-leading electrostatic fume purification equipment.
Our company takes the protection of the environment as the first priority,the realization of clear water and blue sky is the beautiful wish,adheres to the business philosophy of "quality as the root,innovation as the foundation,and customer as the soul",with the service concept of "heart,wisdom,and feelings",and strives to purify Contribute to the living environment of human beings.
