SPECIFICATIONS

After Warranty Service: Online support

After-sales Service Provided: Online support

Application: Indoor Air Purifier

Feature: Eco-Friendly

Function: Fume Filter

Material: Carbon Steel

OEM: Acceptable

Product Name: Electrostatic Precipitator

Usage: Commercial Kitchen Ventilation

brand name: kelv

core components: SUPPLY POWER,ELECTRIC FILED

emission way: 100% low altitude emission

machinery test report: Provided

place of origin: Guangxi, China

purify efficiency: 95%

video outgoing-inspection: Provided

warranty: 1 Year

weight (kg): 57

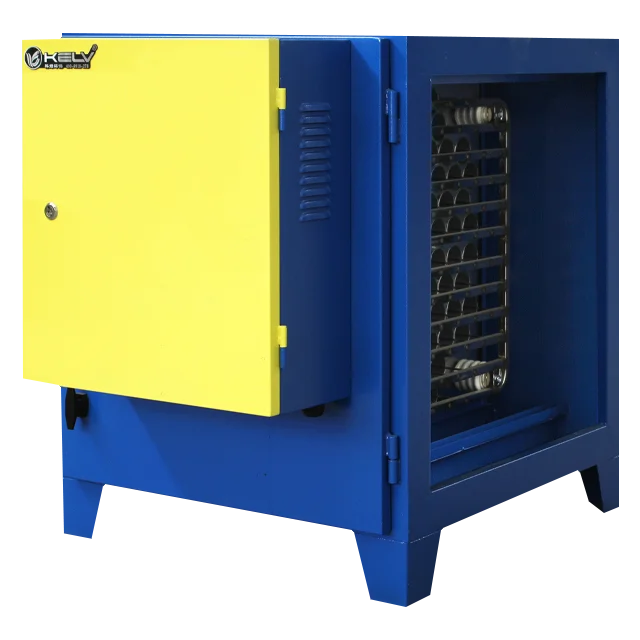

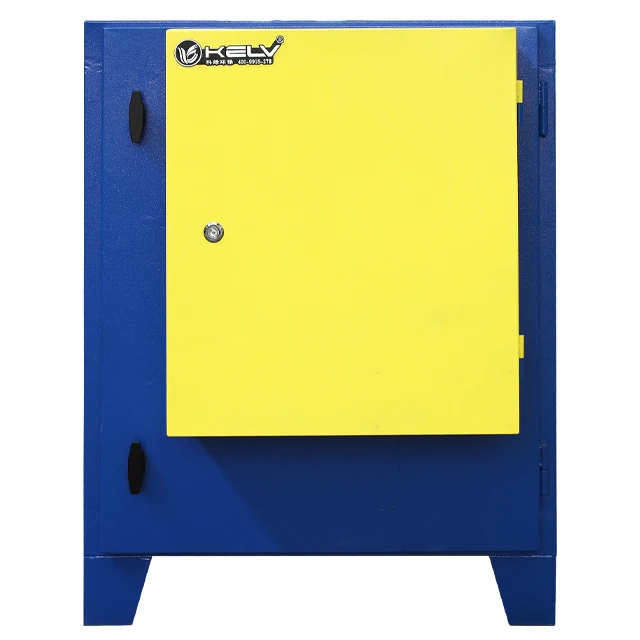

Commercial Kitchen Electrostatic Precipitator（ESP）

Advantages: What can the Electrostatic ozone deodorizing air cleaner help with ?

* removal rate of grease, smoke: Single pass 95%;
double pass >98% * Comply with local environmental policies

* Avoid complaints and be friendly with local residents and commercial neighbor.

* Greatly reduces grease accumulation in the ducts and fire hazard, as well as saving duct cleaning cost.

* Low wind resistance: Energy-saving and saving your cost on high power fan. User usually can use original / factory fan.

Supperior features

1. Odor, smoke, oil control efficiently.Easy installation, maintenance and cleaning.
2. Modular in design: Modular units allow to vertical/horizontal stacking combination as per different air flow or removal
efficiency rate request.

3. Intelligent electrostatic power control system
Electric intensity auto-control function ensures the Commercial Kitchen Electrostatic cleaner maintains a high purification rate after a long time service.
4. Photolysis and odor removal: High power UV tube will remove food odor more efficiently.

5. Voltages: 110-240V, 50Hz (60 Hz optional)
6 Safety and Stability: Door-open power-off protection, Over-current, voltage, temperature protection.

Product Description

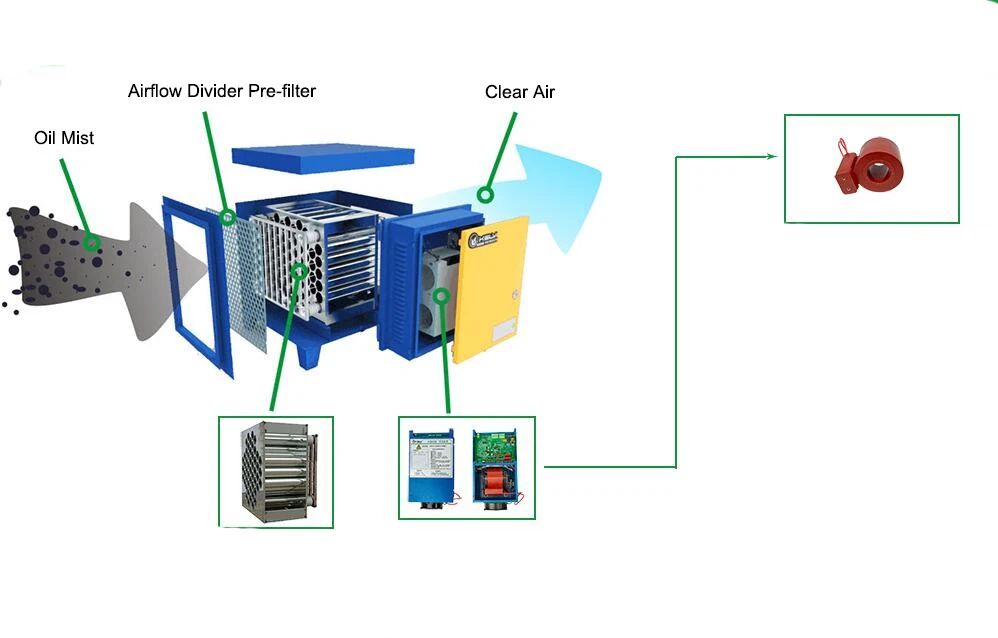

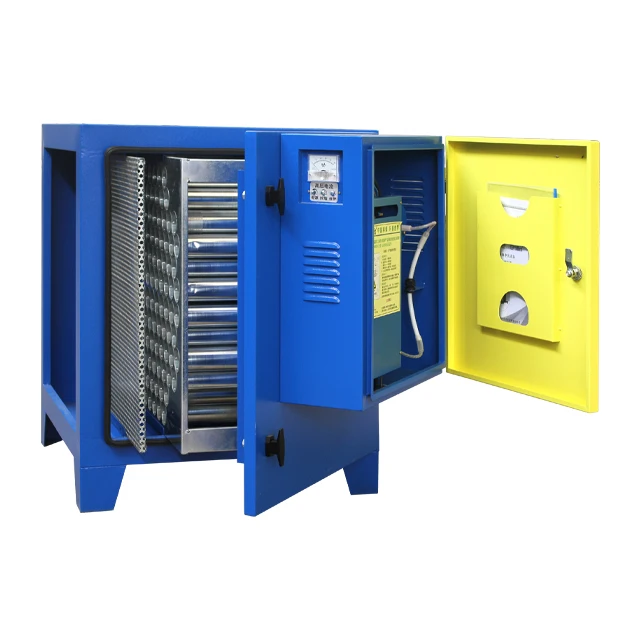

Details Images

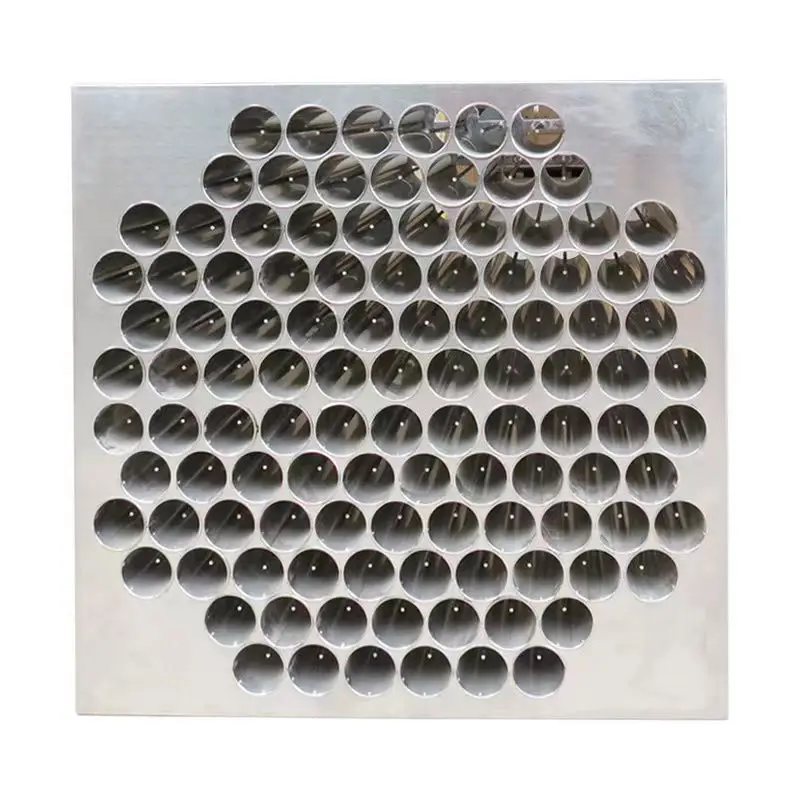

Honeycomb cell: 1. Make full use of the space, and the dust collection area is larger. 2. The cell intensity is evenly distributed. The cathode is located in the middle of the anode, which can obtain a larger average electric field intensity, which is efficient and durable. 3. The cell cathode in the efficient purification area, Electrons are emitted under the action of high-voltage static electricity, and the oil fume is efficiently purified after being charged.

Feedthrough insulators: waterproof, ozone-resistant, pulse-resistant

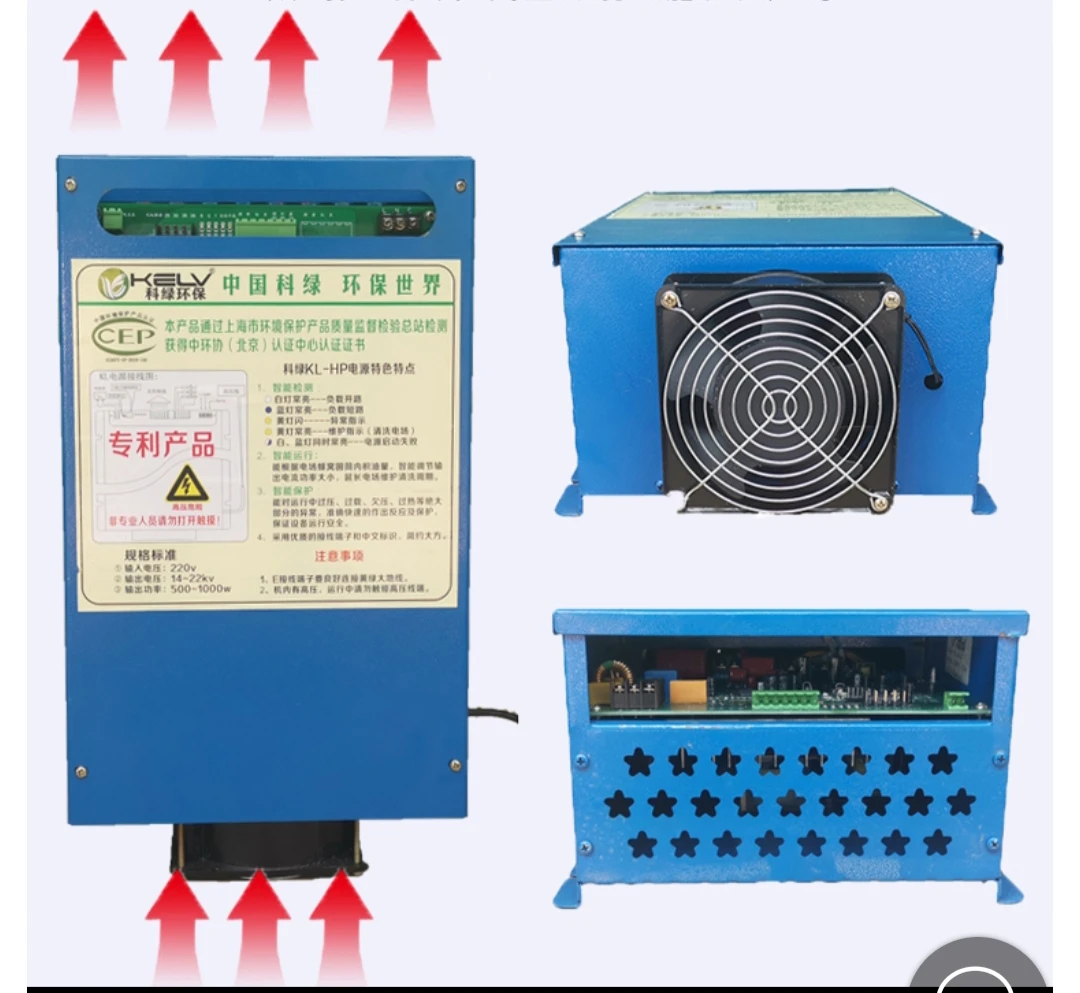

Kelv patented power supply: adaptive ladder power supply, soft start, constant current and voltage limiting control, arc extinguishing protection, high voltage open circuit protection, high voltage short circuit protection, transformer over temperature protection, power safe overload protection

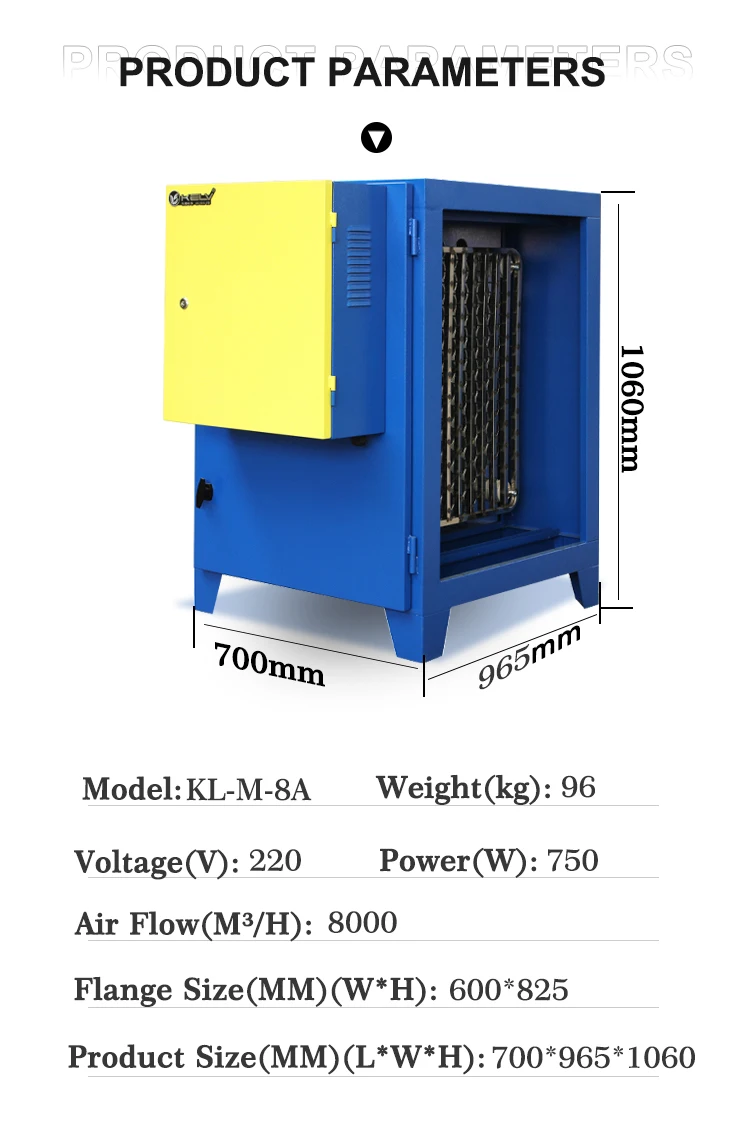

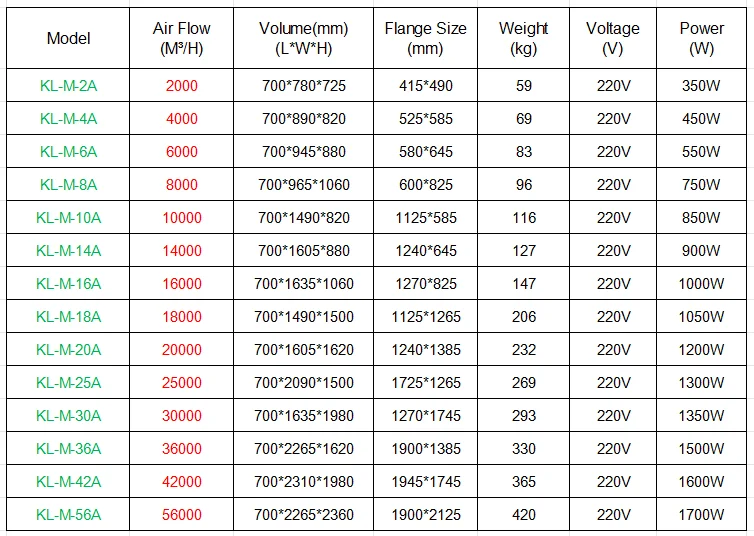

Specification

Model-L （optional uv filter or activated carbon filter for remove smell，Industrial use, etc.）

1.We have various specifications of esp filter. If you want to wholesale from China, I will give you a lower price and the best quality.

2.You can tell me your requirements. We have many fixed products, and we also can customize products according to customers'
requirements

How to choose the model I need? Air Flow is the key !
★1: Check the air flow of exhaust fan, then choose an ESP device larger than that. For example, the exhaust fan is 7000CMH, then you will need ESP device of 8000CMH.
★2 : Check the covering area of range hood, then do the math. Usually 1-meter-long range hood requires 2000CMH to 2500CMH air flow. For example, Kitchen range hood is 1.2m in width and 2m in length, then she will need an ESP of 4000CMH.

Different types for your choice !

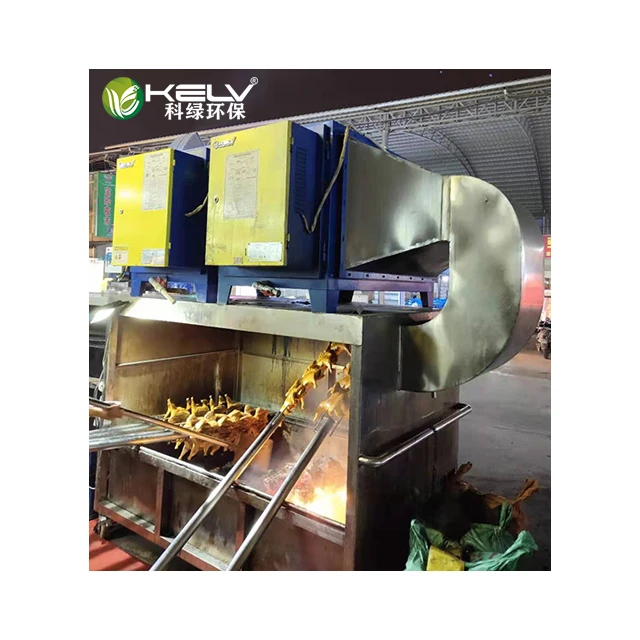

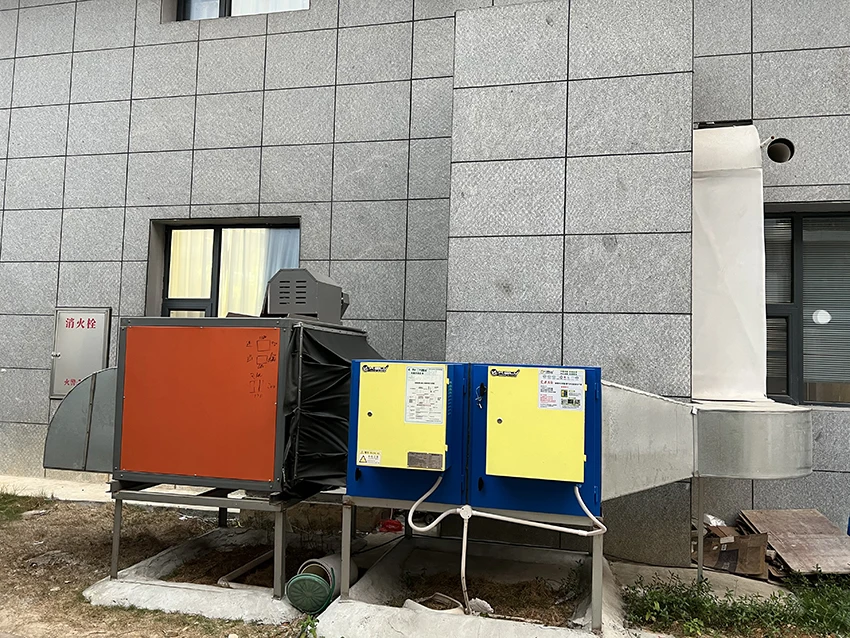

Application

Where to install my ESP device?

Cubic ESP device can be installed anywhere between range hood and exhaust fan. For fire safety, we strongly suggest you put a fire damper after ESP device.

How often should I do the maintenance?
The maintenance is mainly about to clean the honeycomb structure fume collectors. We suggest the user shall clean the cells every 4-6 weeks. Or whenever the maintenance light lights up.

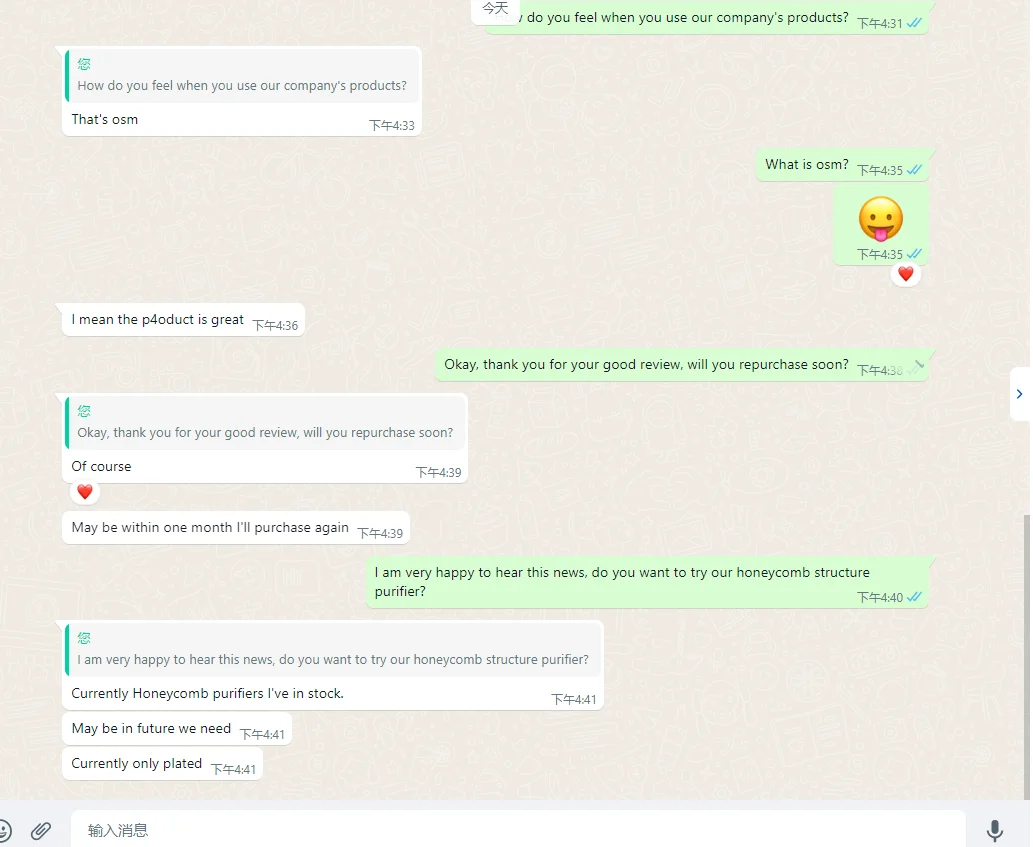

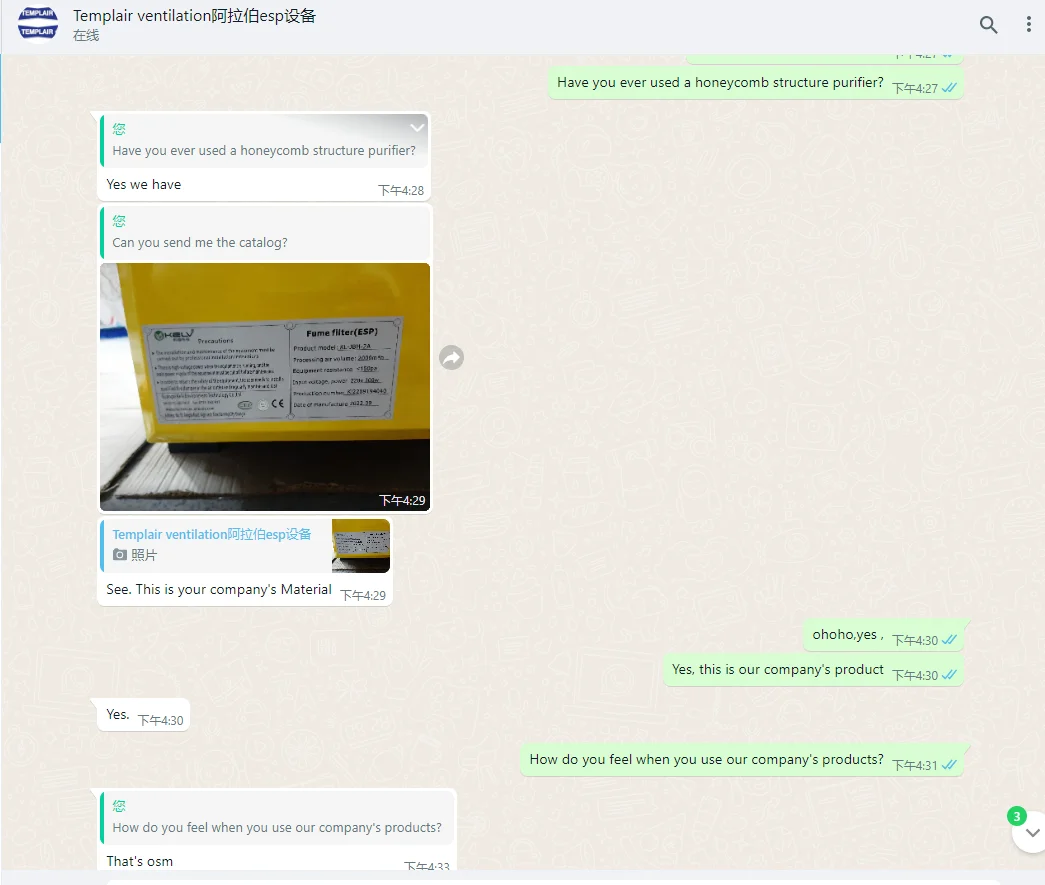

customer feedback

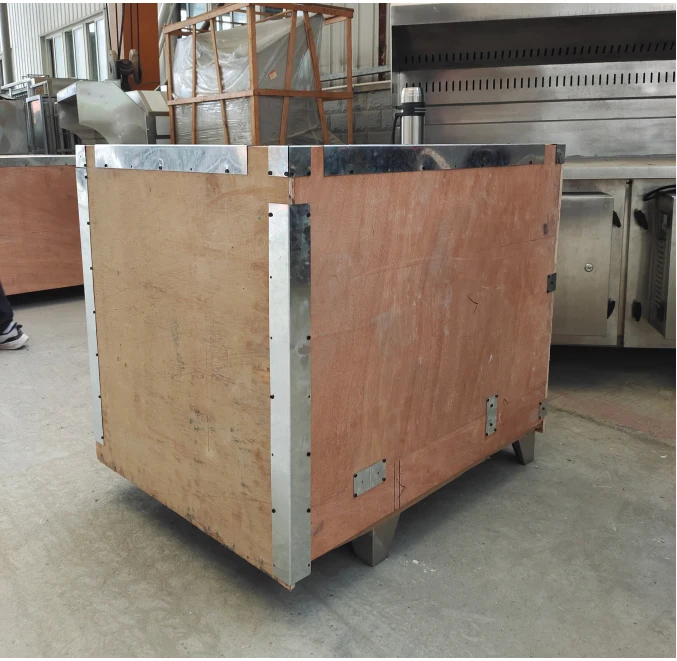

Packaging & Shipping

30-45 days after confirming order,detail delivery date should be decided according to production season and order quantity

Company Profile

VR

GuangXi Kelv Enviroment Technology Co.,ltd

It is a research and development, production,sales and service in one of the high-tech enterprises. located in Nanning Guangxi.It main R & D and production of oil smoke dust odor purification equipment, focusing on overnight barbecue, hotel,kitchens, factories and other oil smoke dust pollution, oil,smoke, odor, dust removal rate of more than 98% .
Our ESP include Oil Mist and Smoke Filter Machine, uv，activated carbon，swirl tower，Mist-Smoke Filter Electrostatic Precipitator and Dust Collector. At present, we have 3 certificates of environmental protection products, 4 software copyrights and 11 independent intellectual property rights. The products are sold to more than 30,000 customers at home and abroad.

Certifications

FAQ

Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?

Q: If we do not know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we
will have the special engineer to your country, but you need to bear some fee like tickets, hotel and meal.

Q: Can you promise to deliver the machine in time?
A: Yes, we can.

Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.

Q: What is the material of your equipment?
A: In order to guarantee quality,We use steel sheet to make machine cover. The electrostatic honeycomb is made from all
stainless steel. This honeycomb technology is owned by only a few companies in China.

Q:Can you offer the OEM for us?
A:We welcome you to be our OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.

Q:What is your minimum order quantity?
A:We welcome one-unit trial.
We believe that trying a small order then making a big decision is a necessary step before we build up a long term cooperation.

Q:Why choose you?
A: Our technical team will be a great backbone in every project, from the very beginning to after-sale service.
Our self-developed intelligent power supply can make sure operation steady with high security.
It can help to save the maintenance cost and time with long service life, maximizing the expectant benefits.
