SPECIFICATIONS

Brand Name: SYHY

Functional Application: /

Model Number: SEN-HZ06CF

Place of Origin: China

Product Features

1. The product is compact and can be disassembled and washed

2. Sensitive response, stable and reliable

3. Food grade POM material, environmentally friendly material

4. Inlet and outlet pipe insertion design, easy to connect and operate

5. Wide range of applications: used in coffee machines, water dispensers, water purifiers, etc

Product parameters

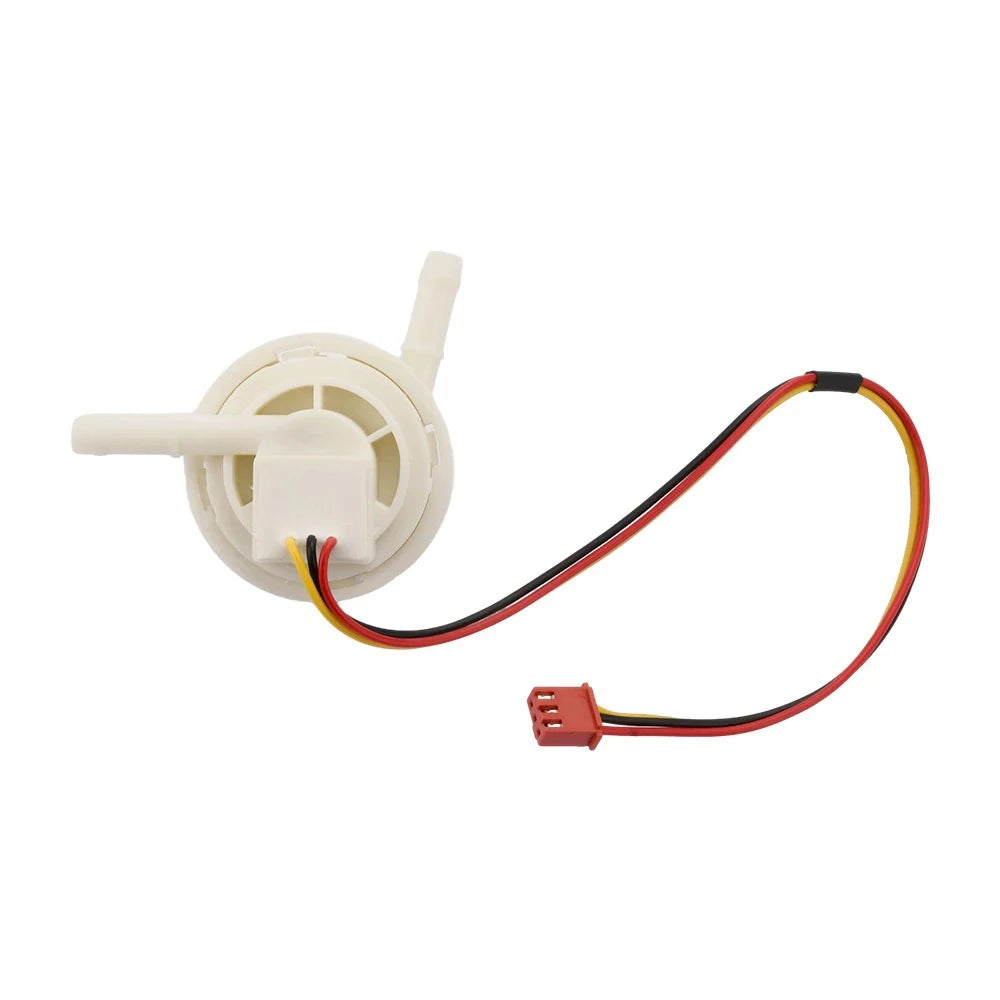

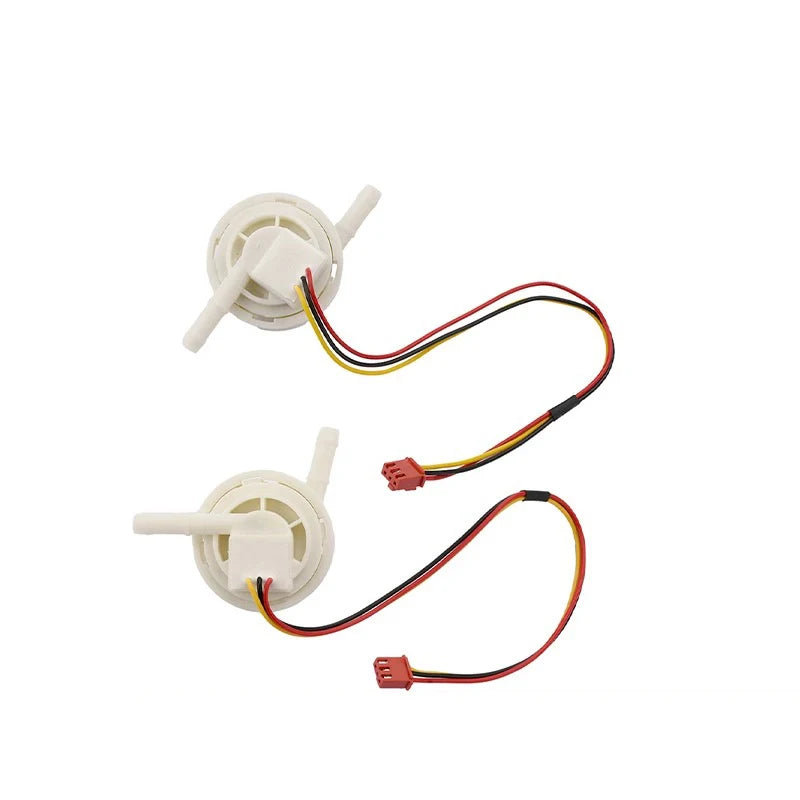

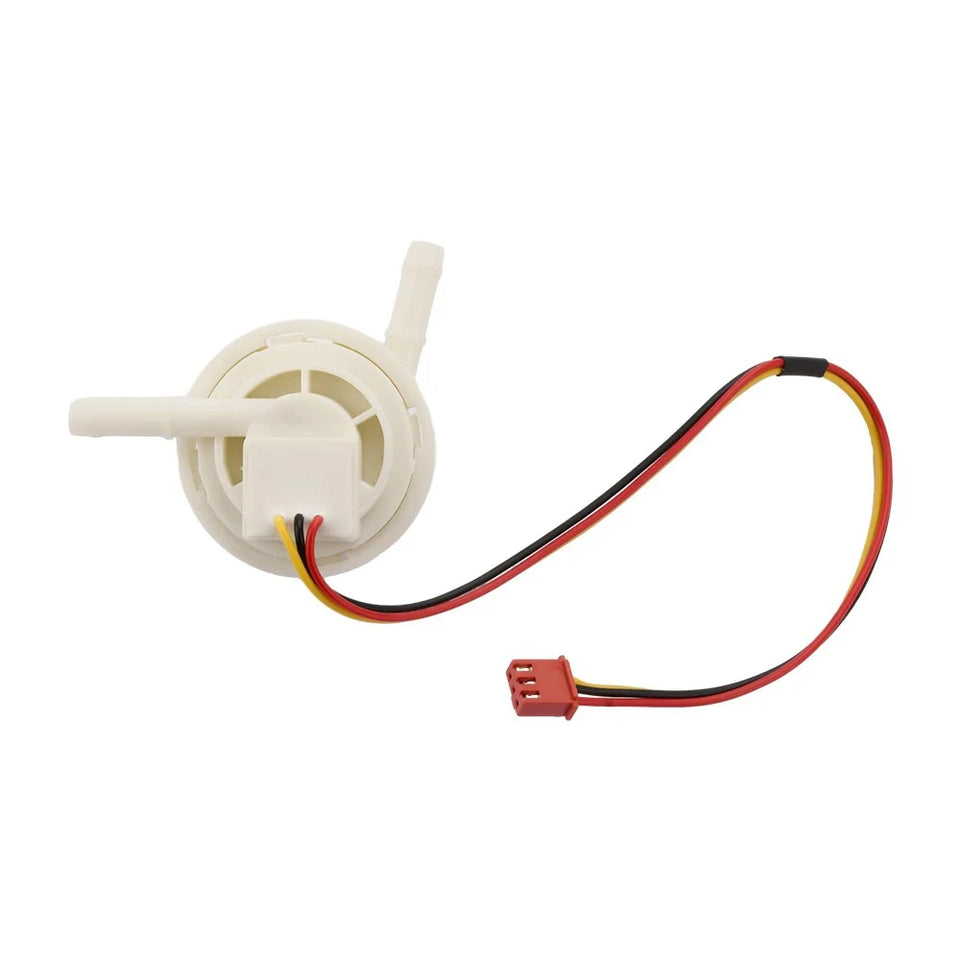

Sensor type: water flow sensor

model: SEN-HZ06CF

Power supply voltage: DC5V

Pulse signal: Hall switch methanol alcohol micro flowmeter

Flow range: 0.2-2.5L/min (with three additional flow ranges to choose from); Water pressure resistance: ≤ 0.4MPa

Voltage and current: DC5V/24V,≤10mA,

Insulation resistance:> 100MΩ; Electrical strength: AC500V,50Hz

Output level: DC5V, High level ≥ 4.5V, low level ≤ 0.5V

Pulse duty cycle: Pulse duty cycle 50%

Instantaneous flow characteristics: flow rate Q=1L/min, 1L=8254pulse ± 5%

Packaging List

Water flow sensor * 1
