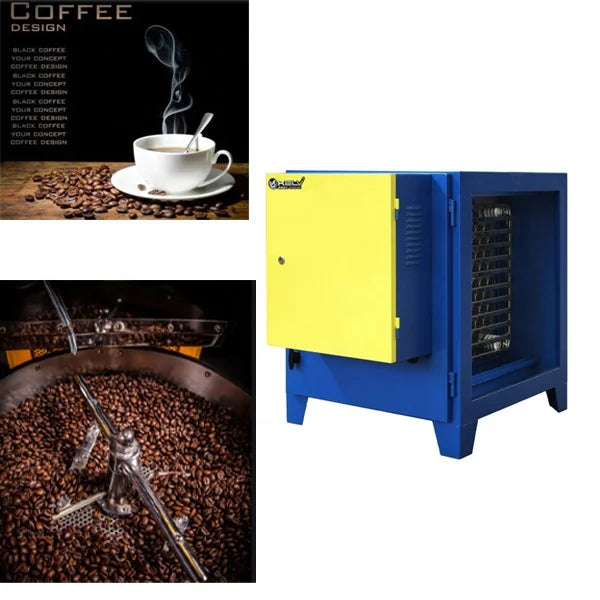

No Smoke No Grease High Quality ESP Air Purifier Kitchen for Coffee Roaster
Regular price
$3,065.93
$3,065.93
SPECIFICATIONS
Applicable Industries: hotels,Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Construction works
Condition: New
Flange size: 580*645mm
Marketing Type: Ordinary Product
Material: Galvanized Steel,galvanizing
OEM/ODE: support
Power: 550W
Product Name: Electrostatic Precipitator
Showroom Location: China
Size(L*W*H): 700*945*880mm
Useful life: >3 years
Voltage: 220V
Warranty: 1 year
Warranty of core components: 1 Year
brand name: kelv
core components: electrostatic filter
machinery test report: Provided
place of origin: Guangxi, China
purify efficiency: 90%
video outgoing-inspection: Provided
warranty: 1 Year
weight (kg): 83 kg

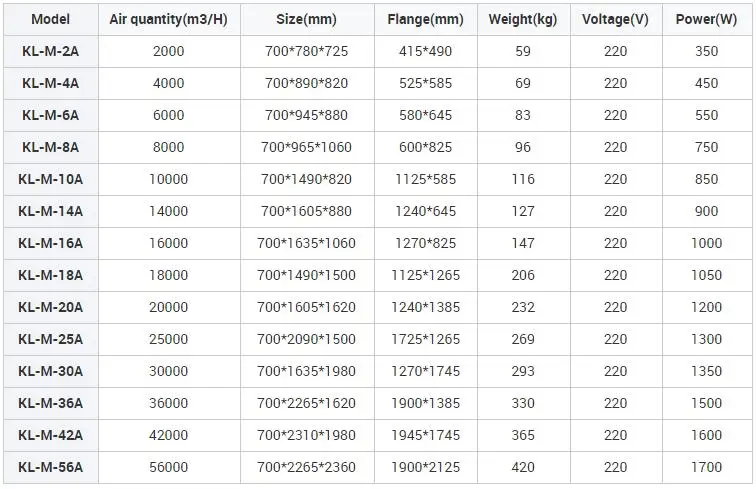

Product Details
Model |
KL-M-6A |
Handling air volume （ m³/h ） |
6000 |
Volum（mm） L*W*H |
700*945*880 |
Flange（mm） （W*H） |
580*645 |
Weight （kg） |
83 |
Voltage （ V ） |
257 |
Power （ W ） |
550 |
Material |

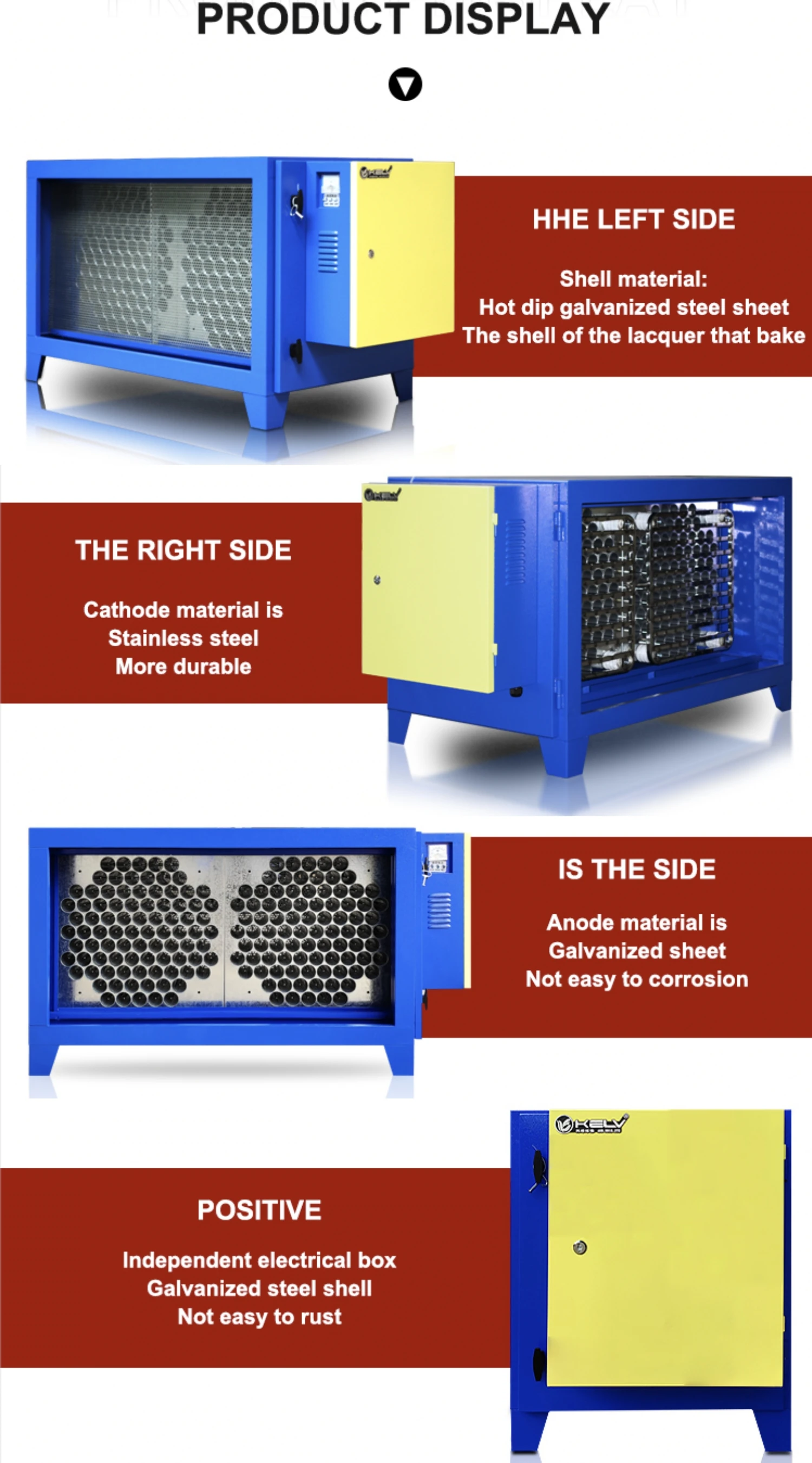

Hot-dip galvanized steel paint shell, stainless steel cathode, galvanized sheet anode tube. |
Purification rate |
95% |
OEM/ODM |
Acceptable |

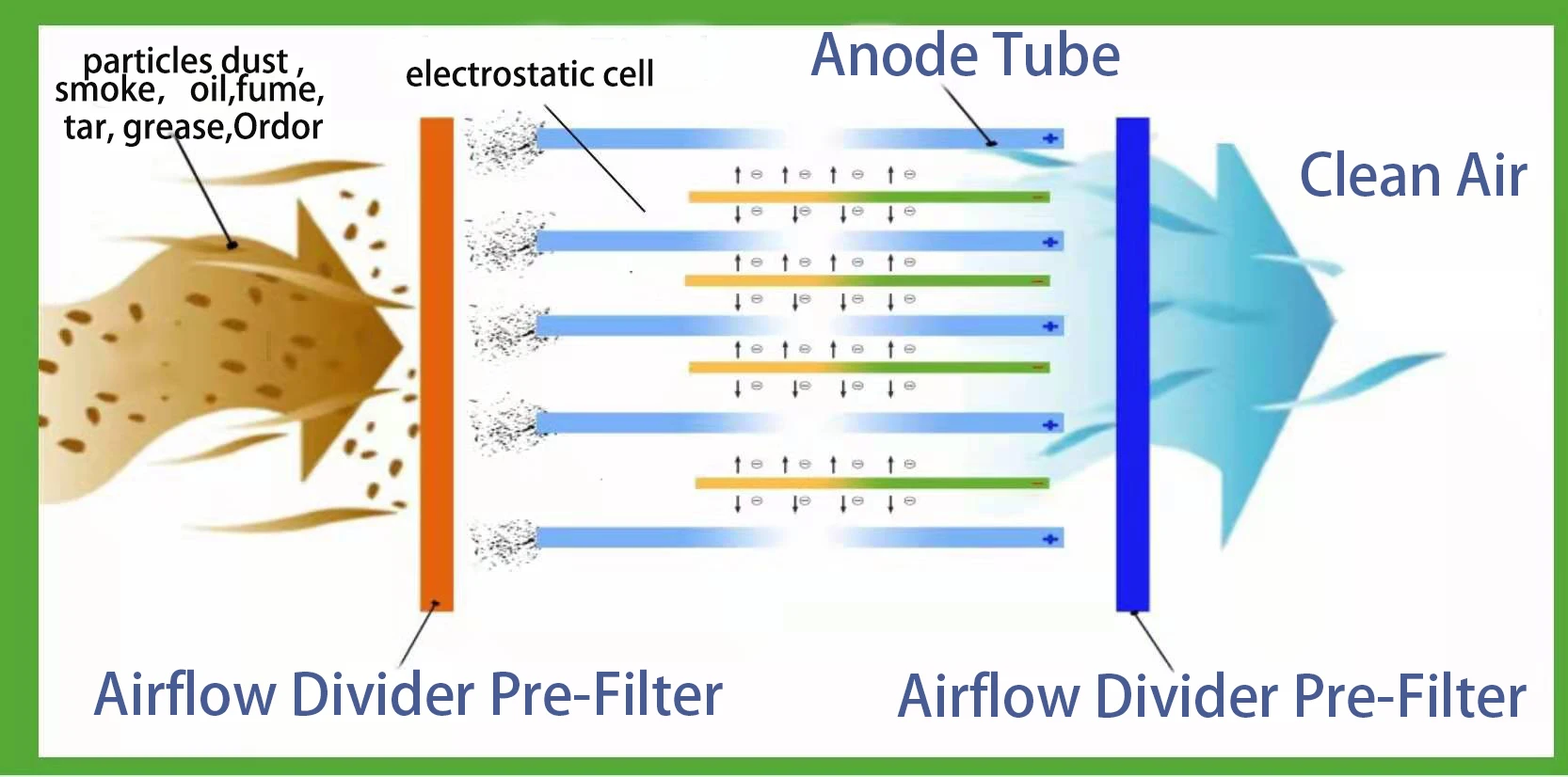

Principle of Electrostatic Purification

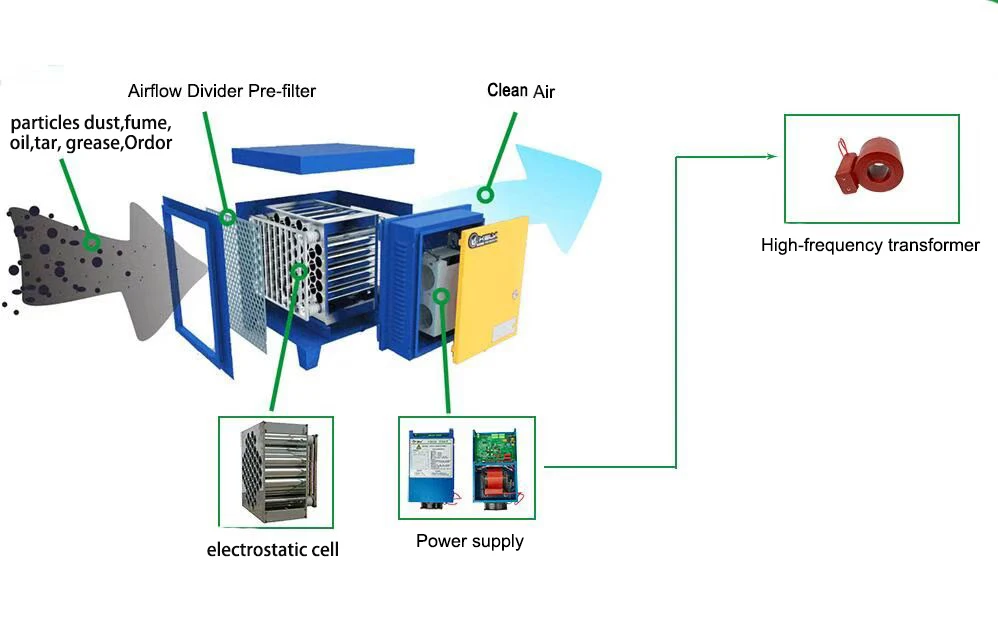

What is electrostatic precipitator（ESP）?
An electrostatic precipitator is a type of filter that uses static electricity to remove oil fume from exhaust fumes before it
exit from the exhaust pipe. The core part of the ESP is the electrostatic cell,The honeycomb structure electrostatic cell which is charged with a high voltage by high voltage power supply. Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders. As a result,85%-95% of oil fume will be moved.
exit from the exhaust pipe. The core part of the ESP is the electrostatic cell,The honeycomb structure electrostatic cell which is charged with a high voltage by high voltage power supply. Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders. As a result,85%-95% of oil fume will be moved.
Working principle:
Electrostatic remove oil fume technology is the use of the cathode in the high voltage electrostatic cell emitted electron and because of the negative ions generated by electron impact air to capture the soot particles, generally in the zero point can make the soot particle in a few seconds with enough charge a charged particle in the electric field is the function of electrostatic cell force, make the soot particles are anode adsorption, sedimentation at the anode, so as to achieve the purpose of purifying oil fume.
Use environment

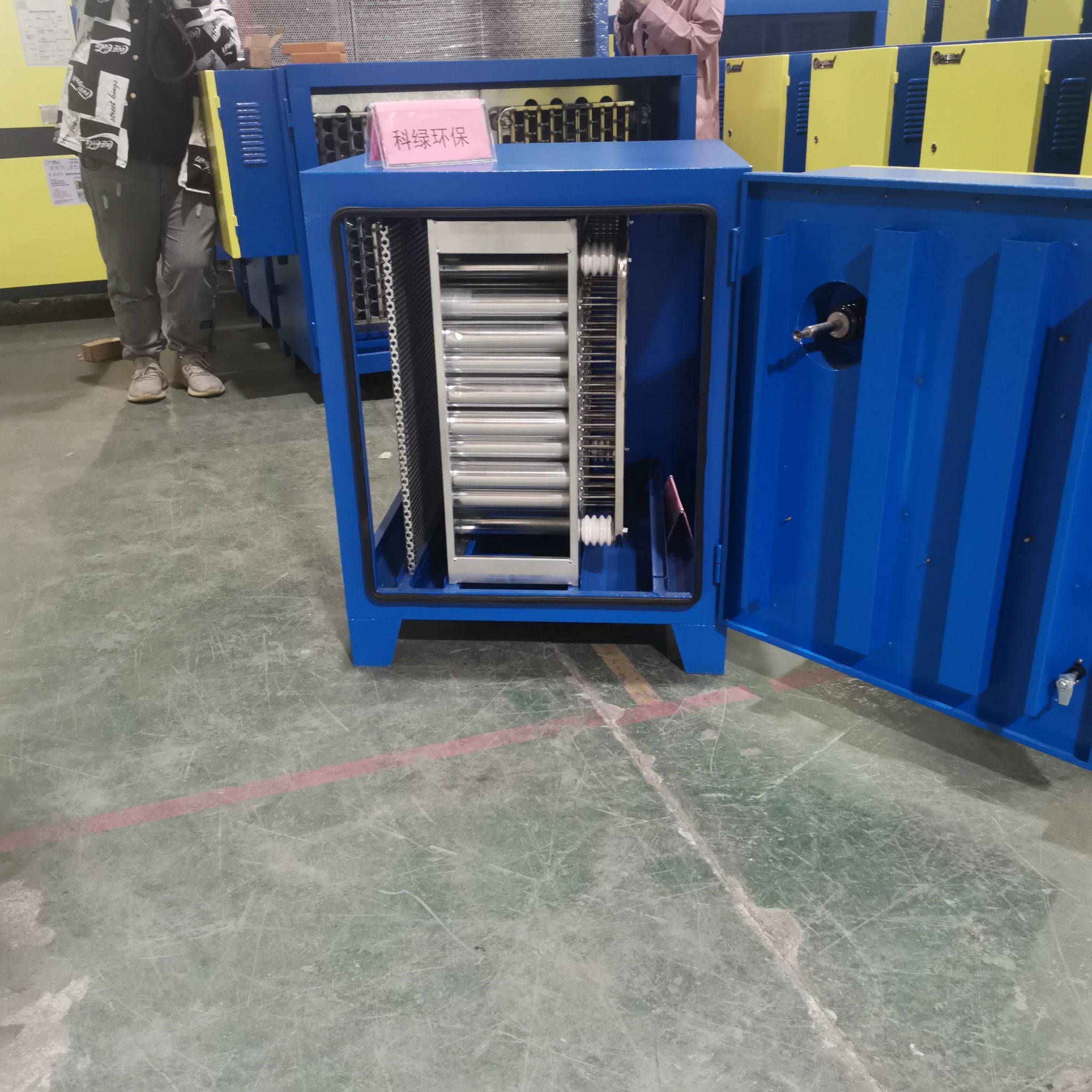

Production Process
Installation diagram
Indoor installation show
Installing a fume purifier indoors is relatively simple in the process of overhaul and maintenance. If there is a problem, it can be found and dealt with in time, which is more convenient and fast for users
Company Information
Guangxi Kelv Environmental Protection Technology Co., Ltd. is a high-tech enterprise focusing on the research and development, production, sales and after-sales of electrostatic commercial fume purification equipment, dust purification equipment and high-frequency and high-voltage intelligent power supplies. Main products: catering oil fume purification equipment, plasma photo-oxygen catalysis industrial waste gas treatment equipment, water spray equipment, ultraviolet deodorization equipment, activated carbon deodorization equipment.

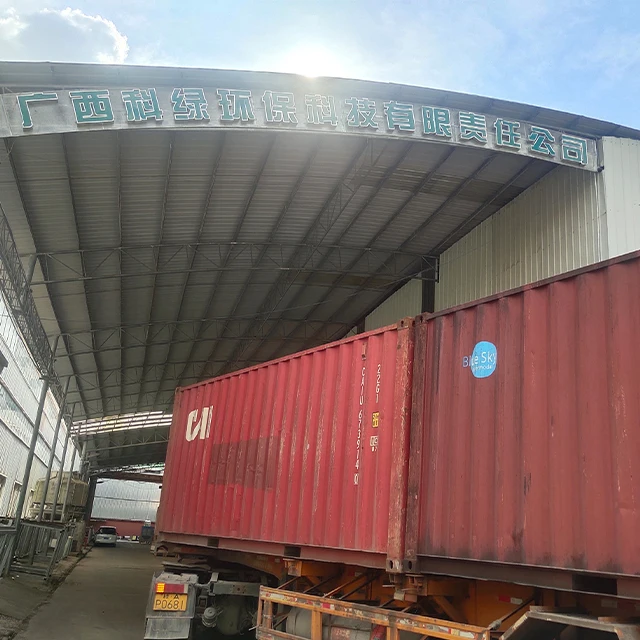

Packaging & Shipping
FAQ
1.How does your factory do regarding quality control?
Quality is priority.Our company has strict technical staff control the quality,please don't worrythe quality about the equipment.
2.How can I trust your company to get goods if I order?
Our company have many regular customers in domestic,and we use the payment such asL/C,T/T and so on,ensure safety of your business.
3. Are you a factory or a trading company?
We are a professional and reliable manufacturer of industry and trade in China, and our team has been dedicated to the electrostatic fume purifier business for more than 5 years.
4.What should I know before installation?
You can install our product inside your kitchen,shown in the attached image .For installation,youcan some kind of ventilation engineering company who is specialized in ventilation installationand knows well the local law about kitchen air filter's installation.You can get answers oradvice from this ventilation engineering company about how to install our product withpermission of the law.
5.What is the washing cycle?
Washing period depends on your setting as well as the washing time.Generally the ESP has tobe washed every three to four weeks by auto-clean device.If your fume iS heavy,you canshorten the washing period.
